This short article is a recipe to make a quick 2 bones IK rig with Latios Framework. It is not a tutorial, but rather a reference for those who want to implement it themselves.

I wanted to have a working 2 bones IK rig in Latios Framework, something similar to the one in Unity’s Animation Rigging package.

Can we reference some bones in an authoring script, get them back in a system and modify their transforms?

Yes. There is multiple ways do do this, I guess, but here is one way to do it.

Let’s say that I need to reference a root bone, a mid bone and a tip bone.

public class TwoBoneIkConstraintAuthoring : MonoBehaviour
{
    [SerializeField] Transform rootBone;
    [SerializeField] Transform midBone;
    [SerializeField] Transform tipBone;
    // [...]

}

I’ll store them as FixedString32Bytes in a TwoBoneIkConstraint component (with extra stuff)

public struct TwoBoneIkConstraint : IComponentData
{
    public FixedString32Bytes TipBoneName;
    public FixedString32Bytes MidBoneName;
    public FixedString32Bytes RootBoneName;

    public float PositionWeight;
    public float RotationWeight;

    public EntityWith<WorldTransform> TargetTransformSource;
    public EntityWith<WorldTransform> HintTransformSource;
}

Then assign them in the authoring script

public class TwoBoneIkConstraintAuthoring : MonoBehaviour
{
    [SerializeField] Transform rootBone;
    [SerializeField] Transform midBone;
    [SerializeField] Transform tipBone;

    [SerializeField] float positionWeight = 1f;
    [SerializeField] float rotationWeight = 1f;

    [SerializeField] Transform targetTransform;
    [SerializeField] Transform hintTransform;

    class TwoBoneIkConstraintBaker : Baker<TwoBoneIkConstraintAuthoring>
    {
        public override void Bake(TwoBoneIkConstraintAuthoring authoring)
        {
            var entity = GetEntity(TransformUsageFlags.Dynamic);
            AddComponent(entity, new TwoBoneIkConstraint
            {
                RootBoneName = new FixedString32Bytes(authoring.rootBone.name),
                MidBoneName = new FixedString32Bytes(authoring.midBone.name),
                TipBoneName = new FixedString32Bytes(authoring.tipBone.name),

                PositionWeight = authoring.positionWeight,
                RotationWeight = authoring.rotationWeight,

                TargetTransformSource = GetEntity(authoring.targetTransform, TransformUsageFlags.Dynamic),
                HintTransformSource = GetEntity(authoring.hintTransform, TransformUsageFlags.Dynamic)
            });
        }
    }
}

Then get the bones in a system or an IJobEntity

partial struct TwoBoneIkJob : IJobEntity
{
    void Execute(OptimizedSkeletonAspect skeleton,
        in TwoBoneIkConstraint constraint,
        in SkeletonBindingPathsBlobReference bindingPaths)
    {
        if (!bindingPaths.blob.Value.TryGetFirstPathIndexThatStartsWith(constraint.TipBoneName,
                out var tipBoneidx))
            return; // Whoops, no tip bone found!


        if (!bindingPaths.blob.Value.TryGetFirstPathIndexThatStartsWith(constraint.MidBoneName,
                out var midBoneidx))
            return; // Whoops, no mid bone found!

        if (!bindingPaths.blob.Value.TryGetFirstPathIndexThatStartsWith(constraint.RootBoneName,
                out var rootBoneidx))
            return; // Whoops, no root bone found!


        // Now we can get the bones from the skeleton aspect
        // using the indices we got from the binding paths blob
        var rootBone = skeletonAspect.bones[rootBoneidx];
        var midBone = skeletonAspect.bones[midBoneidx];
        var tipBone = skeletonAspect.bones[tipBoneidx];

        // We could check if the bones are parented correctly here
        if (tipBone.parent.index != midBone.index || midBone.parent.index != rootBone.index)
        {
            Debug.LogError("TwoBoneIkConstraint bones are not in a valid hierarchy.");
            return;
        }

        // Got you!
        // Now you can modify the transforms of the bones
        rootBone.worldPosition = new float3(0, 0, 0); // Mister, your root bone is on the floor!
        rootBone.worldRotation = quaternion.identity;
    }
}

Done!

How do we do the 2 bone IK thing?

I got lost at this point, reading about CCD, FABRIK, EWBIK, etc… That’s kinda cool but they are general solutions for an arbitrary number of bones. Luckily, we can peek at the Unity Animation Rigging package’s source code and see how they do it.

It was simple to “port”.

First, the utility functions.

// See UnityEngine.Animations.Rigging.AnimationRuntimeUtils
float TriangleAngle(float aLen, float aLen1, float aLen2)
{
    var c = math.clamp((aLen1 * aLen1 + aLen2 * aLen2 - aLen * aLen) / (aLen1 * aLen2) / 2.0f, -1.0f, 1.0f);
    return math.acos(c);
}

// See UnityEngine.Animations.Rigging.QuaternionExt
quaternion FromToRotation(float3 from, float3 to)
{
    var teta = math.dot(math.normalize(from), math.normalize(to));
    if (teta >= 1f)
        return quaternion.identity;

    if (teta <= -1f)
    {
        var axis = math.cross(from, math.right());
        if (math.lengthsq(axis) == 0f)
            axis = math.cross(from, math.up());

        return quaternion.AxisAngle(axis, math.PI);
    }

    return quaternion.AxisAngle(math.normalize(math.cross(from, to)), math.acos(teta));
}

Then the 2 bones IK function.

• Two bone IK ported from Unity Animation Rigging


      var rootBone = skeletonAspect.bones[rootBoneidx];
      var midBone = skeletonAspect.bones[midBoneidx];
      var tipBone = skeletonAspect.bones[tipBoneidx];

      var aPosition = rootBone.worldPosition;
      var bPosition = midBone.worldPosition;
      var cPosition = tipBone.worldPosition;

      var targetTransform = WorldTransforms[constraint.TargetTransformSource];
      var hintTransform = WorldTransforms[constraint.HintTransformSource];


      var tPosition = math.lerp(cPosition, targetTransform.position, constraint.PositionWeight);
      var tRotation = math.slerp(tipBone.worldRotation, targetTransform.rotation,
          constraint.RotationWeight);

      var ab = bPosition - aPosition;
      var bc = cPosition - bPosition;
      var ac = cPosition - aPosition;
      var at = tPosition - aPosition;

      var abLength = math.length(ab);
      var bcLength = math.length(bc);
      var acLength = math.length(ac);
      var atLength = math.length(at);

      var oldAbcAngle = TriangleAngle(acLength, abLength, bcLength);
      var newAbcAngle = TriangleAngle(atLength, abLength, bcLength);


      // Bend normal strategy is to take whatever has been provided in the animation
      // stream to minimize configuration changes, however if this is collinear
      // try computing a bend normal given the desired target position.
      // If this also fails, try resolving axis using hint if provided.
      var axis = math.cross(ab, bc);
      if (math.lengthsq(axis) < k_SqrEpsilon)
      {
          axis = math.cross(hintTransform.position - aPosition, bc);

          if (math.lengthsq(axis) < k_SqrEpsilon) axis = math.cross(at, bc);
          if (math.lengthsq(axis) < k_SqrEpsilon) axis = math.up();
      }

      axis = math.normalize(axis);


      var a = .5f * (oldAbcAngle - newAbcAngle);
      var sin = math.sin(a);
      var cos = math.cos(a);
      var deltaR = new quaternion(axis.x * sin, axis.y * sin, axis.z * sin, cos);

      midBone.worldRotation = math.mul(deltaR, midBone.worldRotation);

      cPosition              = tipBone.worldPosition;
      ac                     = cPosition - aPosition;
      rootBone.worldRotation = math.mul(FromToRotation(ac, at), rootBone.worldRotation);

      var acSqrMag = math.lengthsq(ac);
      if (acSqrMag > 0f)
      {
          bPosition = midBone.worldPosition;
          cPosition = tipBone.worldPosition;
          ab        = bPosition - aPosition;
          ac        = cPosition - aPosition;

          var acNorm = ac / math.sqrt(acSqrMag);
          var ah = hintTransform.position - aPosition;
          var abProj = ab - acNorm * math.dot(ab, acNorm);
          var ahProj = ah - acNorm * math.dot(ah, acNorm);

          var maxReach = abLength + bcLength;

          if (math.lengthsq(abProj) > maxReach * maxReach * 0.001f && math.lengthsq(ahProj) > 0)
          {
              var hintR = FromToRotation(abProj, ahProj);
              rootBone.worldRotation = math.mul(hintR, rootBone.worldRotation);
          }
      }

      tipBone.worldRotation = tRotation;

Bonus

1. Make the TwoBoneIkConstraint an IBufferElementData instead of a IComponentData to allow multiple constraints on the same entity!
2. Make the IK System run after your animation system to allow for animation overrides.

Below are two examples of the same walk animation running with different IK weights.

50% “position weight” : the sneaky guy

100% “position weight” : the biker guy

Conclusion

That may be a bit bold for me to say that but : implementing your own IK system (or any system that would modify animated skeletons) in DOTS with Latios Framework is even easier than it would be with Unity’s GameObject workflow.

Messing with Unity’s Animator Component can be a pain.

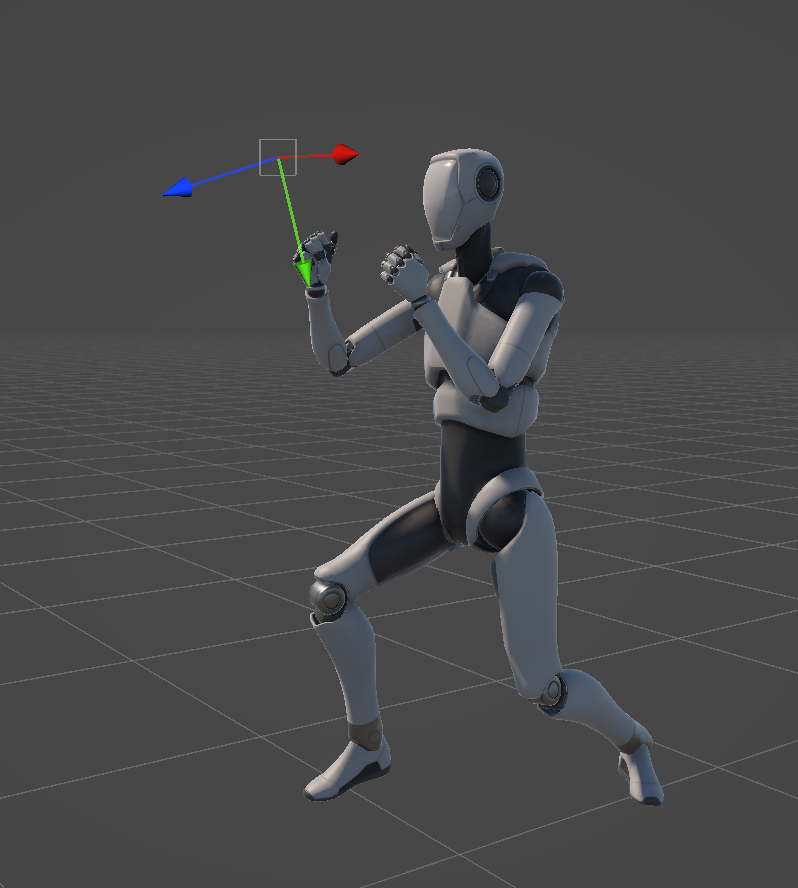

Fighter pose!
